Node reference / XY Plot: 1 - Queue and Render

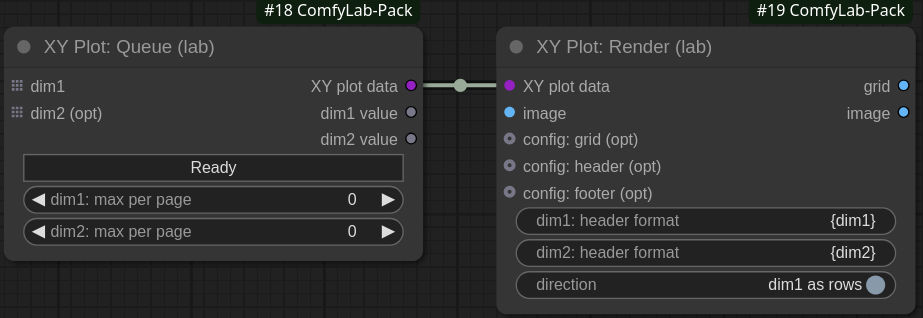

Node overview

XY Plot: Queue

[!IMPORTANT] > dim and dim2 take lists as inputs, and sends each combination of values in outputs

• as the node cannot anticipate what is the type of input list values, the outputs are set to type Any ("*")
• it means that you can connect the outputs everywhere
  • but you must ensure that the type of data in input correspond to the expected in destination node
  • what you send is what you get

dim1 and dim2 are processed following the rule: for a given dim1 value, we process all values of dim2 before switching to the next dim1 value

the node will manage auto-queuing: ensure set the queue size is set to 1

For more detailed explanations, please check the core concepts.

Inputs / Widgets / Outputs

Inputs

input name	type	description	comment
dim1	LIST	input list #1
dim2	LIST	optional: input list #2

Widgets

widget name	type	description	comment
dim1: max per page	INT	pagination for dim1 values	0 to disable
dim2: max per page	INT	pagination for dim2 values	0 to disable

Outputs

output name	type	description	comment
XY Plot data	XYPLOT_DATA	queue processing data	linked to XY Plot: Render
dim1 value	ANY (*)	list element from dim1 input list
dim2 value	ANY (*)	list element from dim2 input list

XY Plot: Render

dim1: header format and dim2: header format:

• enter here a template string, following the syntax of Python string format() method
• the {dim1} and {dim2} placeholders will be replaced by the current dim1 / dim2 value
• very handy if you want to prefix the row / column headers, for example:
  • if you have CFG values in dim1, by default the headers will be 7.5, 8, ...
  • just change the dim1 header format to CFG: {dim1} and you will get: CFG: 7.5, CFG: 8, ...
• there are plenty of advanced techniques, but you will probably not use them here
  • however if you want to learn more, you can check the Format node reference

direction: whether dim1 values are displayed as rows, or columns

Inputs / Widgets / Outputs

Inputs

input name	type	description	comment
XY Plot data	XYPLOT_DATA	queue processing data	linked from XY Plot: Queue
image	IMAGE	image generated by the subprocess (KSampler, ...)
config: grid	PLOT_CONFIG_GRID	optional: grid configuration	linked from Plot Config: Grid
config: grid	PLOT_CONFIG_HF	optional: page header configuration	linked from Plot Config: Header/Footer
config: grid	PLOT_CONFIG_HF	optional: page footer configuration	linked from Plot Config: Header/Footer

Widgets

widget name	type	description	comment
dim1: header format	STRING	dim1 template string	use placeholder {dim1} to insert current dim1 value
dim2: header format	STRING	dim2 template string	use placeholder {dim2} to insert current dim2 value
direction	BOOLEAN	display dim1 as rows or columns

Outputs

output name	type	description	comment
grid	IMAGE	generated grid(s)	outputs when enough images have been collected
image	IMAGE	image received in input	individual image as received in input
