⏱️ ComfyUI Batch Image Timer

Version: v0.2.0

A specialized custom node for ComfyUI designed to focus on batch image processing workflows, providing a real-time 7-segment LED display timer to accurately track the total execution duration across sequential loops and bulk image generation pipelines.

📌 Where to Find It in ComfyUI

After installation, you can find this node by right-clicking on the canvas, navigating to utils/timer (or using the search bar and typing Batch Image Timer).

✨ Features

🎯 Dedicated Batch Image Focus: Tailored specifically for bulk image processing pipelines, sequential loading loops (e.g., Sequential Image Loader), and image-to-image batch tasks.
📺 7-Segment LED UI: Retro digital clock design rendered directly on the canvas node.
🎨 Interactive Palette & Theme Persistence: Click-to-change display color scheme (White, Blue, Green, Yellow, Pink). Your color choice is automatically saved inside the Workflow JSON (per-workflow persistence).
⏱️ Macro-Level Accurate Timing: Unlike native node timers, this timer measures the entire duration of a batch process—from the first image starting to the very last image completing—without resetting between iterations.
🟢 Dynamic Visual Status Feedback: The progress counter [ X / Y ] changes color based on the workflow state:
- ⚪ Gray ([ READY ]): Idle, waiting for execution.
- 🔵 Blue: Workflow running.
- 🟢 Green ([ Y / Y ]): Workflow completed successfully.
- 🟡 Yellow ([ INTERRUPT ]): Workflow interrupted by the user.
- 🔴 Pink ([ ERROR ]): Workflow encountered an error and stopped.
⏸️ Absolute Timer Independence: Click the LED digits to pause/resume, or double-click to reset.

⚠️ Semantic Note on Interaction: Pausing only freezes the UI time ticking. It does not pause the backend workflow, nor does it stop the progress counter from updating. It is designed to let you exclude personal away-time from the final stats.
🔗 Auto Batch Count Sync: Connect total_images directly to batch loaders (e.g., Sequential Image Loader, ComfyUI-BatchFolderTools) to automatically update image counts without manual input.
🛡️ Multi-Workflow Isolation: Open multiple workflows in the same browser session. The timer states are perfectly isolated per workflow to prevent cross-contamination.

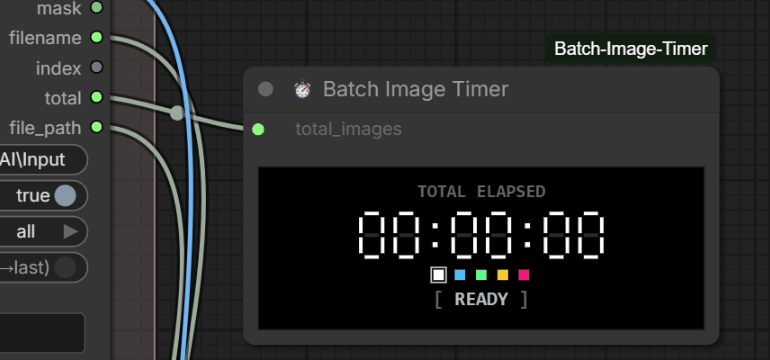

_{*Click LED digits to Pause/Resume, double-click to reset, and click swatches to change colors.*}

📦 Installation

Note: This node relies strictly on native web standard components and ComfyUI API events. No external Python dependencies or requirements.txt are required.

Method 1: Via ComfyUI-Manager (Recommended)

Open ComfyUI and click on Manager in the menu.
Select Custom Nodes Manager.
Search for ComfyUI-Batch-Image-Timer.
Click Install and restart your ComfyUI.

Method 2: Manual Installation (Git Clone)

Navigate to your ComfyUI custom_nodes directory:
```
cd ComfyUI/custom_nodes
```

Clone this repository:

git clone https://github.com/hermankwan/ComfyUI-Batch-Image-Timer

Restart your ComfyUI instance.

🚀 How to Use & Interactive Controls

Add Batch Image Timer to your workflow graph.
Link your total image count to the total_images input (or leave it at 1 for native tensor batches).
Click Queue Prompt to start processing.

🖱️ Canvas Interactions

Single Click (Pause/Resume): Click anywhere on the 7-segment LED time digits to freeze or continue the timer. (The cursor will change to a pointer).
Double Click (Reset): Double-click the LED digits to reset the clock back to 00:00:00.
- If the workflow is currently running, the timer will restart from zero immediately.
- If the workflow is idle, the clock will remain at 00:00:00.
Theme Swatches: Click any of the 5 color blocks below the digits to change the LED glow color instantly.

💡 How It Works & `total_images` Principles

To ensure accurate time tracking and clean progress stats, Batch Image Timer distinguishes between ComfyUI's native tensor batching and sequential image-by-image processing loops:

1. Native Tensor Batching (`batch_size = N` in KSampler / Latent)

Behavior: When you set batch_size = N in a Latent node, ComfyUI processes all N images in parallel within a single Prompt execution cycle.
Setting Rule: Keep total_images = 1 (default).
Explanation: The timer tracks the total execution time for the entire tensor batch as 1 unit of work. The counter will display [ 1 / 1 ] and turn green upon completion.

2. Sequential / Iterative Batching (e.g., Sequential Image Loaders)

Behavior: Workflows that process images iteratively (one-by-one over multiple independent Prompt execution cycles).
Setting Rule: Set total_images = N (or connect it directly from your batch loader node).
Explanation: The timer will aggregate the total time across all iterations. The counter will update from [ 1 / N ] to [ N / N ], tracking progress without resetting the clock between images.

📋 Changelog

v0.2.0 (Major Architecture Refactor)

Complete Codebase Rewrite: Refactored into a modular ES Modules architecture.
Batch Tracking Logic: Fixed counting/resetting issues with Sequential Loaders. Added robust termination fallbacks for interrupted queues.
UI/UX Overhaul: Redesigned node layout, fixed window resizing conflicts, and introduced dynamic color feedback for statuses (Ready/Running/Complete/Error/Interrupt).
State Isolation: Timer interactions (Pause/Reset) are now fully decoupled from the progress counter. Added multi-workflow isolation.

v0.1.1

Added interactive hover-to-pause functionality.
Fixed multi-batch time jumping / rebound bugs.
Implemented workflow-scoped theme color persistence.

v0.1.0

Initial release focused on batch image workflow timing.

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.
