ClipVision_Tools

Custom ComfyUI nodes using CLIP Vision models for image similarity analysis.

Based on comfyUI-PL-data-tools by PnthrLeo.

This repository provides several custom nodes for ComfyUI that enable efficient image similarity search and analysis using CLIP Vision models.

Node Overview:

• ClipVision Database Nodes - Create and access small or large image collections (already tried with a collection up to ~100.000 images).
• Image Embedding Analysis Nodes - Search for similar imags within your collections using cosine-similarity.
• Output / Result-Browser - Browse through search results by "scrolling" up and down the image_index (depending on your direction of your match-setting).

Before performing similarity searches, you first need to create a database for your image collection:

• Connected a "Load CLIP Vision" node and select a Clip Vision model. From my experience "CLIP-ViT-bigG-14-laion2B-39B-b160k" seems to work very well. Download the Clip vision .safetensor-file into your ComfyUI "/models/clip_vision" folder
• path_to_images: Specify the full path to your image directory. All subfolders are scanned automatically.
• new_db_name: Choose a filename with the .json extension. The file will automatically be stored in your ComfyUI "/models/embDBs" folder.
• If you have Crystools installed, you can use the "Show any value to console/display" node to display a list of files that could not be recorded in the database (any other node capable of displaying text output works as well).

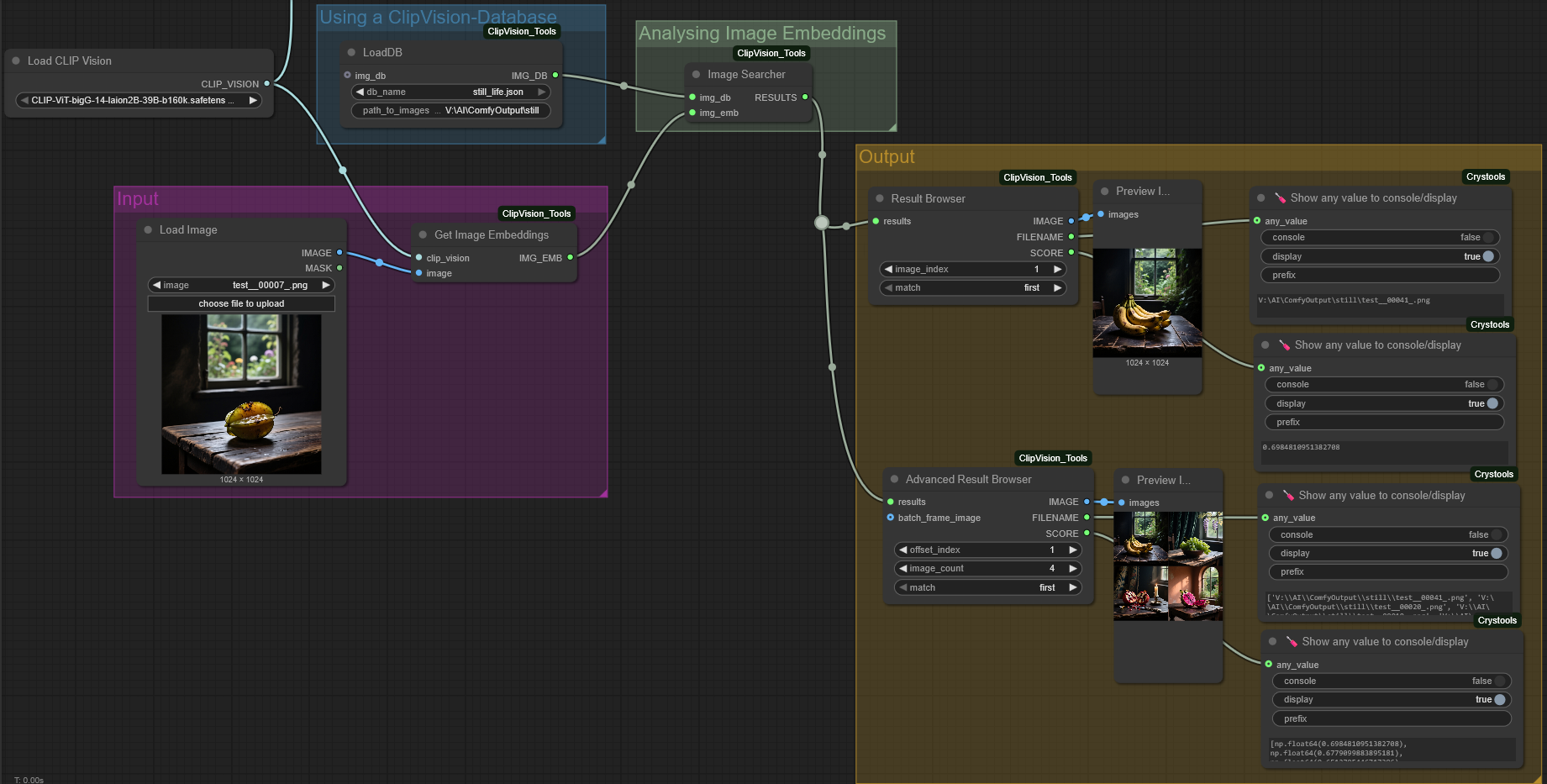

After creating a database, you can search for similar images using a workflow like the one shown above:

• Load an image into the Get Image Embeddings node, connected to a "Load CLIP Vision" node and select a Clip Vision model. → This node generates the embedding data of your input image.
• Pass this embedding data to the "Image Searcher" node, which calculates image similarities using a cosine similarity algorithm.
• "Result Browser": Browse the search results
  • image_index: Index of the image, depending on match direction.
  • match: "first" / "last" - "first" → image_index 0 outputs the most similar image. "last" → image_index 0 outputs the least similar image.
• "Advanced Result Browser": Similar to "Result Browser", but extended to output an image batch, all images scaled to resolution of "batch_frame_image" or resolution of the first image of the batch.
  • offset_index: see image_index of "Result Browser"
  • image_count: the amount of images to output as a image batch
  • match: see match of "Result Browser"

Additionally you can chain up as many databases has you want by using the optional "img_db" socket.

You can directly compare the similarity of two images by connecting the outputs of two "Get Image Embeddings" nodes to a "Compare Embeddings" node.

This node calculates the similarity as a factor between 0.0 and 1.0, which can be displayed using Crystools’ “Show any value to console/display” node or any similar output node.

Manual install

# install latest version of ClipVision_Tools
cd Your_ComfyUI_Folder/ComfyUI/custom_nodes/
git clone https://github.com/MoonMoon82/ClipVision_Tools
cd ClipVision_Tools

# Install required python modules
Your_ComfyUI_Folder/python_embeded/python.exe -s -m pip install -r requirements.txt

Dependencies:

Currently, only the orjson Python module is required.

🙏 Credits

Based on the original idea from comfyUI-PL-data-tools by PnthrLeo. Extended and adapted by MoonMoon82 under the MIT License.
