ResolutionSelector for ComfyUI

A custom node for Stable Diffusion ComfyUI to enable easy selection of image resolutions for SDXL SD15 SD21

• Select base SDXL resolution, width and height are returned as INT values which can be connected to latent image inputs or other inputs such as the CLIPTextEncodeSDXL width, height, target_width, target_height.
• If using older model SD 1.5 or SD 2.1 use the base adjustment dropdown. This will adjust (reduce) the base_resolution to suit the model. ie. base_resolution 1024 (SDXL) will equal 768 in SD21 and 512 in SD15.
• Resolution list based off what is currently being used in the Fooocus SDXL Web UI.

Installation

# Change to the directory you installed ComfyUI
cd pathTo/ComfyUI

# Change to the custom_nodes directory ie.
cd custom_nodes

# Clone the repo into custom_nodes
git clone https://github.com/bradsec/ComfyUI_ResolutionSelector.git

# Restart ComfyUI

Usage after install

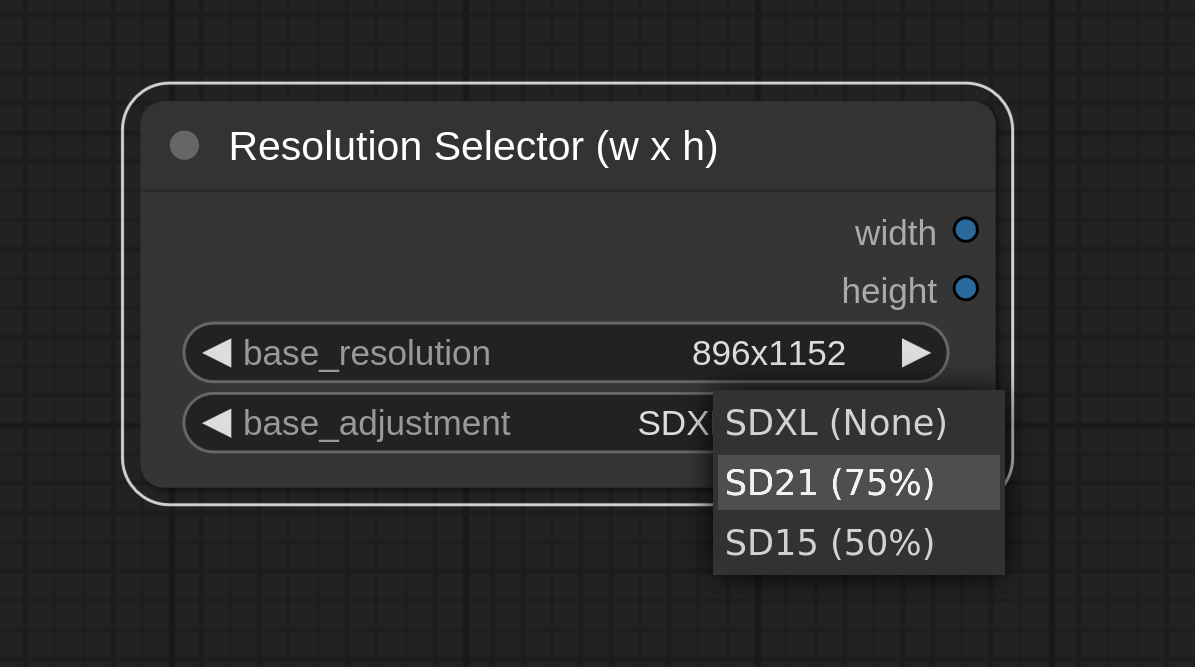

Add Node > utils > Resolution Selector (w x h)

SDXL hookup example

SD15 hookup example
