change detector's output type from IMAGE to MASK

README.md

@@ -7,8 +7,8 @@
 * SegmDetector - Detect segmentation from input image.
 * BboxDetector - Detect bbox from input image.

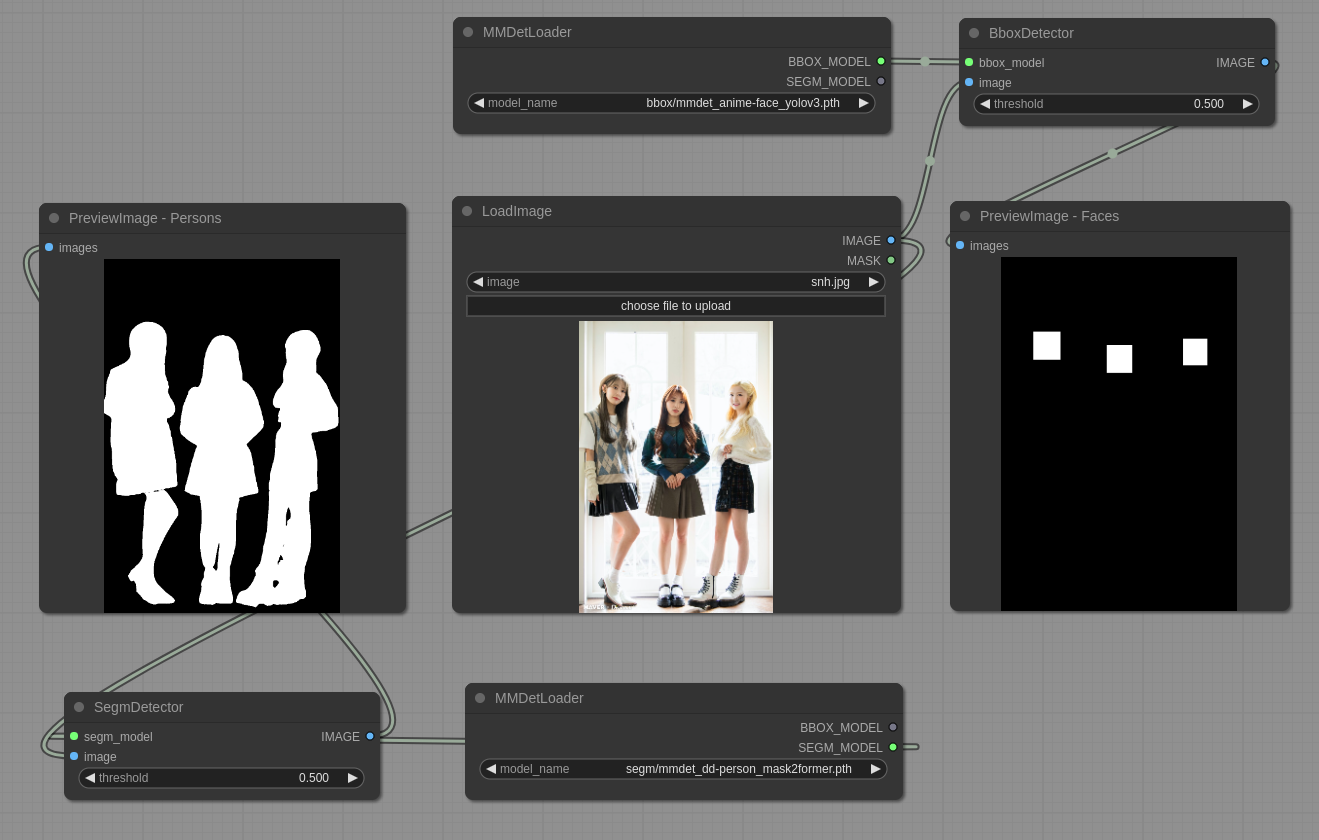

-### ![example](https://user-images.githubusercontent.com/128333288/228896955-d84e164e-af87-4c4d-a377-662a6363381f.png)
-Detected mask example.
+### ![example](https://user-images.githubusercontent.com/128333288/229093882-239c4a2a-0c94-4b77-b0fa-8ac07eda17b9.png)
+Head detection example.

 # Installation


comfyui-impact-pack.py

@@ -14,18 +14,23 @@ def packages_mim():
     return [r.decode().split('==')[0] for r in subprocess.check_output([sys.executable, '-m', 'mim', 'list']).split()]

 # INSTALL
-print("### Check dependencies")
-if "openmim" not in packages_pip():
-    subprocess.check_call([sys.executable, '-m', 'pip', '-U', 'install', 'openmim'])
+print("Loading: ComfyUI-Impact-Pack")
+print("### ComfyUI-Impact-Pack: Check dependencies")
+installed_pip = packages_pip()

-if "mmcv-full" not in packages_mim():
+if "openmim" not in installed_pip:
+    subprocess.check_call([sys.executable, '-m', 'pip', 'install', '-U', 'openmim'])
+
+installed_mim = packages_mim()
+
+if "mmcv-full" not in installed_mim:
     subprocess.check_call([sys.executable, '-m', 'mim', 'install', 'mmcv-full==1.7.0'])

-if "mmdet" not in packages_mim():
+if "mmdet" not in installed_mim:
     subprocess.check_call([sys.executable, '-m', 'mim', 'install', 'mmdet==2.28.2'])

 # Download model
-print("### Check basic models")
+print("### ComfyUI-Impact-Pack: Check basic models")

 if os.path.realpath("..").endswith("custom_nodes"):
     # For user
@@ -66,7 +71,6 @@ from PIL import Image
 import model_management

 def load_mmdet(model_path):
-    print(model_management.vram_state)
     model_config = os.path.splitext(model_path)[0] + ".py"
     model = init_detector(model_config, model_path, device="cpu")
     return model
@@ -78,9 +82,7 @@ def create_segmasks(results):
     segms = results[2]
     segmasks = []
     for i in range(len(segms)):
-        cv2_mask = segms[i].astype(np.uint8) * 255
-        mask = Image.fromarray(cv2_mask)
-        segmasks.append(mask)
+        segmasks.append(segms[i].astype(np.float32))
     return segmasks

 def combine_masks(masks):
@@ -90,8 +92,35 @@ def combine_masks(masks):
         cv2_mask = np.array(masks[i])
         combined_cv2_mask = cv2.bitwise_or(combined_cv2_mask, cv2_mask)

-    combined_mask = Image.fromarray(combined_cv2_mask)
-    return combined_mask
+    # combined_mask = Image.fromarray(combined_cv2_mask)
+    # return combined_mask
+    mask = torch.from_numpy(combined_cv2_mask)
+    return mask
+
+def bitwise_and_masks(mask1, mask2):
+    cv2_mask1 = np.array(mask1)
+    cv2_mask2 = np.array(mask2)
+    cv2_mask = cv2.bitwise_and(cv2_mask1, cv2_mask2)
+    mask = torch.from_numpy(cv2_mask)
+    return mask
+
+def dilate_masks(masks, dilation_factor, iter=1):
+    if dilation_factor == 0:
+        return masks
+    dilated_masks = []
+    kernel = np.ones((dilation_factor,dilation_factor), np.uint8)
+    for i in range(len(masks)):
+        cv2_mask = masks[i]
+        dilated_mask = cv2.dilate(cv2_mask, kernel, iter)
+        dilated_masks.append(dilated_mask)
+    return dilated_masks
+
+def subtract_masks(mask1, mask2):
+    cv2_mask1 = np.array(mask1) * 255
+    cv2_mask2 = np.array(mask2) * 255
+    cv2_mask = cv2.subtract(cv2_mask1, cv2_mask2)
+    mask = torch.from_numpy(cv2_mask) / 255.0
+    return mask

 def inference_segm(model, image, conf_threshold):
     image = image.numpy()[0] * 255
@@ -192,21 +221,22 @@ class SegmDetector:
                         "segm_model": ("SEGM_MODEL", ),
                         "image": ("IMAGE", ),
                         "threshold": ("FLOAT", {"default": 0.5, "min": 0.0, "max": 1.0, "step": 0.01}),
+                        "dilation": ("INT", {"default": 0, "min": 0, "max": 255, "step": 1}),
                       }
                 }

-    RETURN_TYPES = ("IMAGE",)
+    RETURN_TYPES = ("MASK",)
     FUNCTION = "doit"

     CATEGORY = "ImpactPack"

-    def doit(self, segm_model, image, threshold):
+    def doit(self, segm_model, image, threshold, dilation):
         mmdet_results = inference_segm(segm_model, image, threshold)
         segmasks = create_segmasks(mmdet_results)
+        if dilation > 0:
+            segmasks = dilate_masks(segmasks, dilation)
         mask = combine_masks(segmasks)
-
-        image = pil2tensor(mask)
-        return (image,)
+        return (mask,)

 class BboxDetector(SegmDetector):
     @classmethod
@@ -216,21 +246,62 @@ class BboxDetector(SegmDetector):
                         "bbox_model": ("BBOX_MODEL", ),
                         "image": ("IMAGE", ),
                         "threshold": ("FLOAT", {"default": 0.5, "min": 0.0, "max": 1.0, "step": 0.01}),
+                        "dilation": ("INT", {"default": 4, "min": 0, "max": 255, "step": 1}),
                       }
                 }


-    def doit(self, bbox_model, image, threshold):
+    def doit(self, bbox_model, image, threshold, dilation):
         mmdet_results = inference_bbox(bbox_model, image, threshold)
         segmasks = create_segmasks(mmdet_results)
+        if dilation > 0:
+            segmasks = dilate_masks(segmasks, dilation)
         mask = combine_masks(segmasks)
+        return (mask,)

-        image = pil2tensor(mask)
-        return (image,)
+class BitwiseAndMask:
+    @classmethod
+    def INPUT_TYPES(s):
+        return {"required":
+                    {
+                        "mask1": ("MASK", ),
+                        "mask2": ("MASK", ),
+                      }
+                }
+
+    RETURN_TYPES = ("MASK",)
+    FUNCTION = "doit"
+
+    CATEGORY = "ImpactPack"
+
+    def doit(self, mask1, mask2):
+        mask = bitwise_and_masks(mask1, mask2)
+        return (mask,)
+
+class SubtractMask:
+    @classmethod
+    def INPUT_TYPES(s):
+        return {"required":
+                    {
+                        "mask1": ("MASK", ),
+                        "mask2": ("MASK", ),
+                      }
+                }
+
+    RETURN_TYPES = ("MASK",)
+    FUNCTION = "doit"
+
+    CATEGORY = "ImpactPack"
+
+    def doit(self, mask1, mask2):
+        mask = subtract_masks(mask1, mask2)
+        return (mask,)


 NODE_CLASS_MAPPINGS = {
     "MMDetLoader": MMDetLoader,
     "BboxDetector": BboxDetector,
     "SegmDetector": SegmDetector,
-}
+    "BitwiseAndMask": BitwiseAndMask,
+    "SubtractMask": SubtractMask,
+}
