SD Prompt Reader Node

This is a subproject of the SD Prompt Reader. It helps you extract metadata from images in any format supported by the SD Prompt Reader and saves the images with additional metadata to ensure compatibility with metadata detection on websites such as Civitai.

Supported Formats • Installation • Usage • Change Log • Credits

Supported Formats

	PNG	JPEG	WEBP	TXT*
A1111's webUI	✅	✅	✅	✅
Easy Diffusion	✅	✅	✅
StableSwarmUI*	✅	✅
Fooocus-MRE*	✅	✅
InvokeAI	✅
ComfyUI*	✅
NovelAI	✅
Draw Things	✅
Naifu(4chan)	✅

See SD Prompt Reader for details

Installation

While ZIP package is available, it is strongly recommended not to use it for installation.

Install and update via ComfyUI Manager (Recommended)

Search for SD Prompt Reader in the ComfyUI Manager and install it.

Install manually

Please make sure to install the submodules along with the main repository.

1. cd to the custom_node folder
2. Clone this repo

   git clone --recursive https://github.com/receyuki/comfyui-prompt-reader-node.git


3. Install dependencies

   cd comfyui-prompt-reader-node
   pip install -r requirements.txt


Update

When updating, don't forget to include the submodules along with the main repository.

git pull --recurse-submodules

Usage

Prompt Reader Node

• The Prompt Reader Node works exactly the same as the standalone SD Prompt Reader. It uses the Image Data Reader from the standalone SD Prompt Reader, allowing it to support the same formats and receive updates along with the SD Prompt Reader.
• Due to custom nodes and complex workflows potentially causing issues with SD Prompt Reader's ability to read image metadata correctly, it is recommended to embed the Prompt Saver Node within the workflow to ensure maximum compatibility.
• For images containing multiple sets of parameters, such as those processed through hires-fix or refiner, you will need to modify the parameter_index to select the parameters you need
• For images generated by SDXL and containing multiple sets of prompts, the text_g will be combined with text_l into a single prompt
• For batch processing, please use the Batch Loader node.

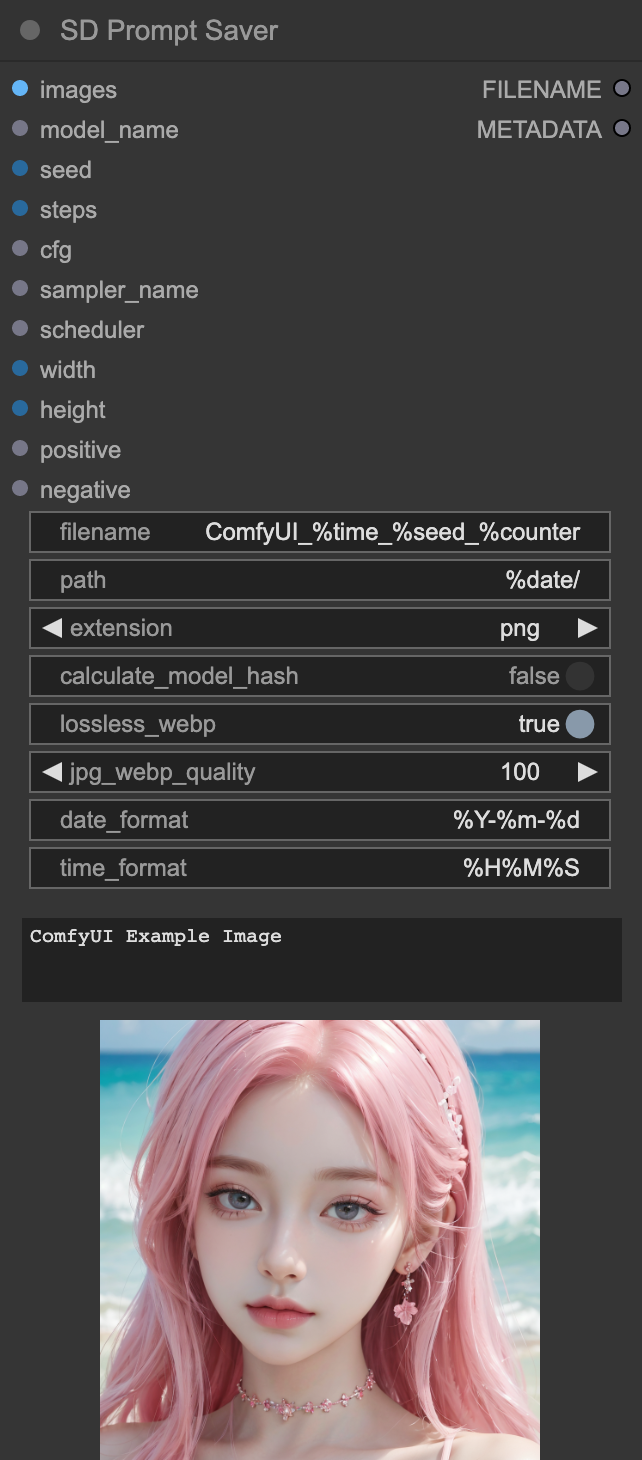

Prompt Saver Node

• The Prompt Saver Node and The Parameter Generator Node are designed to be used together.
• The Prompt Saver Node will write additional metadata in the A1111 format to the output images to be compatible with any tools that support the A1111 format, including SD Prompt Reader and Civitai. Due to custom nodes and complex workflows potentially causing issues with SD Prompt Reader's ability to read image metadata correctly, it is recommended to embed this node within the workflow to ensure maximum compatibility.
• Since it's not possible to directly extract metadata from KSampler, it is necessary to use the Parameter Generator Node to generate parameters and simultaneously output them to both the Prompt Saver Node and KSampler.
• Please refer to the following table for placeholders supported by the filename and path.

  Placeholder
  %date
  %time
  %counter
  %seed
  %steps
  %cfg
  %extension
  %model
  %sampler
  %scheduler
  %quality

• %counter cannot be used for the path. This %counter is slightly different from the %counter in the built-in Saver node, it will count all image files in the path.
• When the filename already exists, an index will be added at the end of the filename, e.g. file.png, file_1.png, file_2.png.
• For the date_format and time_format, please refer to strftime.org or www.strfti.me.

Parameter Generator Node

• Since it's not possible to directly extract metadata from KSampler, it is necessary to use the Parameter Generator Node to generate parameters and simultaneously output them to both the Prompt Saver Node and KSampler.
• The Parameter Generator Node can also be used as a control panel for complex ComfyUI workflows, just like the AP workflow.
• The model_version and aspect_ratio are used only for calculating the optimal resolution of the selected model version under the chosen aspect ratio. The calculation method is based on the Stability AI development documentation and the StableSwarmUI source code (developed by Stability AI).
• refiner_start refers to the proportion of steps completed when the refiner starts running, i.e., the proportion of base steps to total steps. This is used to calculate the start_at_step (REFINER_START_STEP) required by the refiner KSampler under the selected step ratio.

Batch Loader Node

• The Batch Loader node is specifically designed for the Prompt Reader node to batch-read image files in a directory and cannot be used with other custom nodes.
• For batch processing, please connect the IMAGE output of the Batch Loader node to the image input of the Prompt Reader node.
• The path supports relative paths such as ./input/ or absolute paths like C:/Users/receyuki/Pictures.
• Both \ and / are acceptable.

Prompt Merger Node & Type Converter Node

• Since the A1111 format cannot store text_g and text_l separately, SDXL users need to use the Prompt Merger Node to combine text_g and text_l into a single prompt.
• Since model_name, sampler_name, and scheduler are special types that cannot be directly used by some other nodes, You can use the Type Converter Node to convert them into STRING type.

Example Workflow

Credits

• The SD Prompt Reader node is based on ComfyUI Load Image With Metadata
• The SD Prompt Saver node is based on Comfy Image Saver & Stable Diffusion Webui
• The seed generator in the SD Parameter Generator is modified from rgthree's Comfy Nodes
• A special thanks to @alessandroperilli and his AP Workflow for providing numerous suggestions
